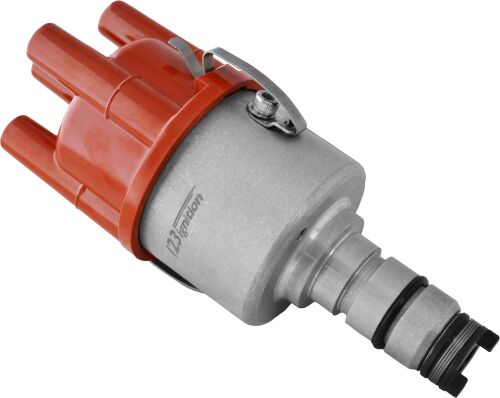

The 123VW-4-R is created in cooperation with VW-professionals ; this has resulted in a product that can be used in all type ‘1’, ‘2’ and ‘3’ cars WITHOUT vacuum advance
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves
SPECIFICATIONS
direct.
: CW (topview)
voltage
: 4,0-15,0 Volts
range
: 500 - 8000 rpm
temperature
: -30 to 100 Celsius
coil
: stock or High Energy coil
primary coil NOT below 1,0 ohm
dwell
: constant current, fully autom.
time-out
: after 1 second current is switched off
spark-bal.
: better than 0,5 degr. crankshaft
vacuum
: none
max.advance
: 45 degr. crankshaft
wiring
: red = +6V or +12V, black = '-' coil
NOTE:
For the VW 411(L)E, VW 412 (L)E and VW 1600E with Bosch ‘D-jetronic’ injection-systems : order the 123VW-4-R-V-IE.
