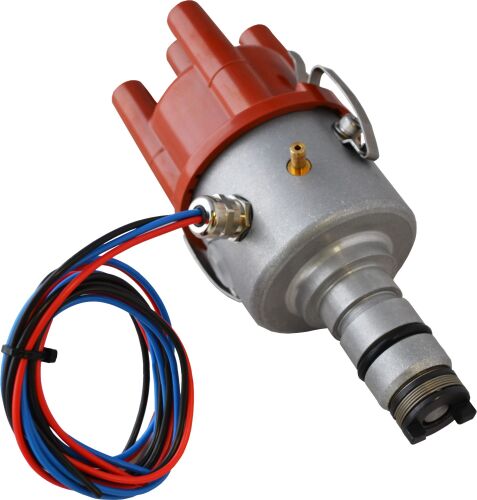

123 Distributor - With Vacuum

123 Distributor - With Vacuum


With Vacuum

:  at  £289.00  each

New batch on order, so will be available this month.

The 123VW-4-R-V is created in cooperation with VW-professionals ; this has resulted in a product that can be used on all VW based aircooled engines with vacuum advance


The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.

Please take a look in the table below for available advance curves

direct. : CW (topview)
voltage : 4,0-15,0 Volts
range : 500 - 8000 rpm
temperature : -30 to 100 Celsius
coil : stock or High Energy coil
  primary coil NOT below 1,0 ohm
dwell : constant current, fully autom.
time-out : after 1 second current is switched off
spark-bal. : better than 0,5 degr. crankshaft
vacuum : Starts at 100 mmHg
  ends at 10 degr. @ 300 mmHg
  gearshift retard > 17 inchHg
max.advance : 45 degr. crankshaft
wiring : red = +6V or +12V, black = '-' coil





For the VW 411(L)E, VW 412 (L)E and VW 1600E with Bosch ‘D-jetronic’ injection-systems : order the 123VW-4-R-V-IE.
